SCH

Fan Assisted Heaters for 600 x 600 Ceiling Grid

• Providing warm inviting commercial premises
• Ceiling mounting position allows free use of floor and wall space, an important consideration in retail premises
• First class whole life value from a product built to the highest possible standard and designed to give many years of trouble free service
• Low running costs by selecting from a range of control options
• Specifically designed for quick hassle free installation

Typical Applications

• Shops
• Changing rooms
• Entrance areas

Features Common to all Models

• Insert depth only 153mm
• Designed to rest in the T bar of a 600 x 600 suspended ceiling grid
• Air inlet and outlet through front panel – no requirement for air supply from the ceiling void
• White aluminium egg-crate diffuser
• Pre-wired to rear mounted terminal enclosure
• Auto-reset over-temperature protection
• Simple reduction in output by removal of link in rear mounted enclosure
  (3kW reduced to 2kW, 4.5kW reduced to 2.25kW)

Controlling SCH Heaters

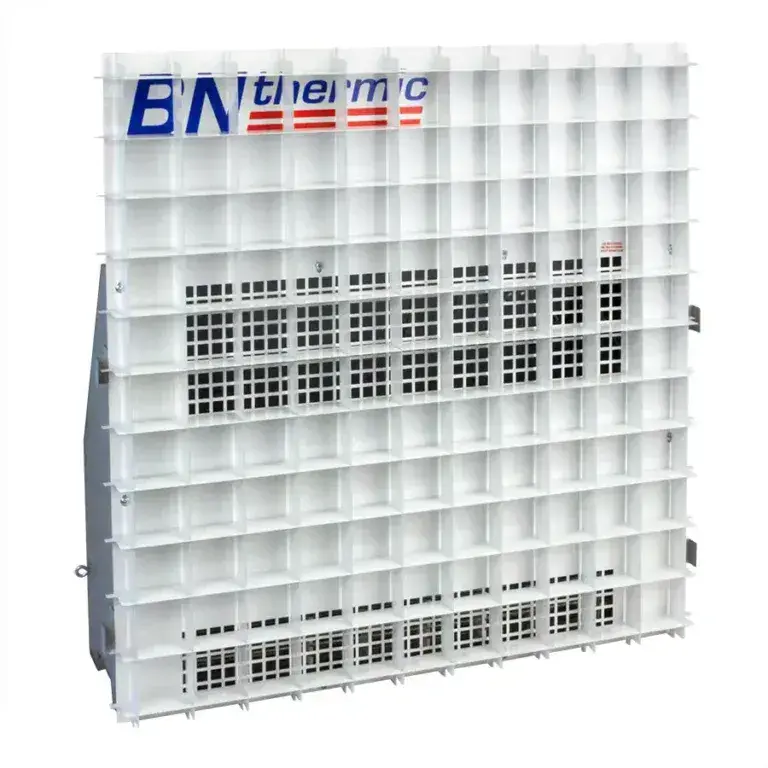

SCHG-30 3kW Heater

The SCHG-30 can be controlled by a CS-1 wall-mounted controller. The CS-1 should be positioned in a convenient location and provides on/off/high heat/low heat/fan-only settings. Where thermostatic control is preferred we recommend our tamperproof Hard Case Range. Hard Case's tamperproof design ensures that only authorised personnel can adjust the temperature setting.

SCHG-30E 3kW Heater with Built-In Thermostat

The SCHG-30E has a built-in electronic thermostat with a rear mounted adjustment knob. Once energised, the fan will run will run continuously while the thermostat will monitor the incoming air temperature and adjust the heat output accordingly. Where additional manual control is required a CS-1 wall mounted controller should be used. The CS-1 should be positioned in a convenient location and provides on/off/high heat/low heat/fan-only settings.

SCHG-45 4.5kW Heater

The SCHG-45 can be controlled by a CS-1 wall-mounted controller. The CS-1 should be positioned in a convenient location and provides on/off/high heat/low heat/fan-only settings. Alternatively thermostatic control can be provided by a remote mounted RST-TP tamperproof thermostat. The RST-TP’stamperproof design prevents casual adjustment of temperature setting.

Specification
