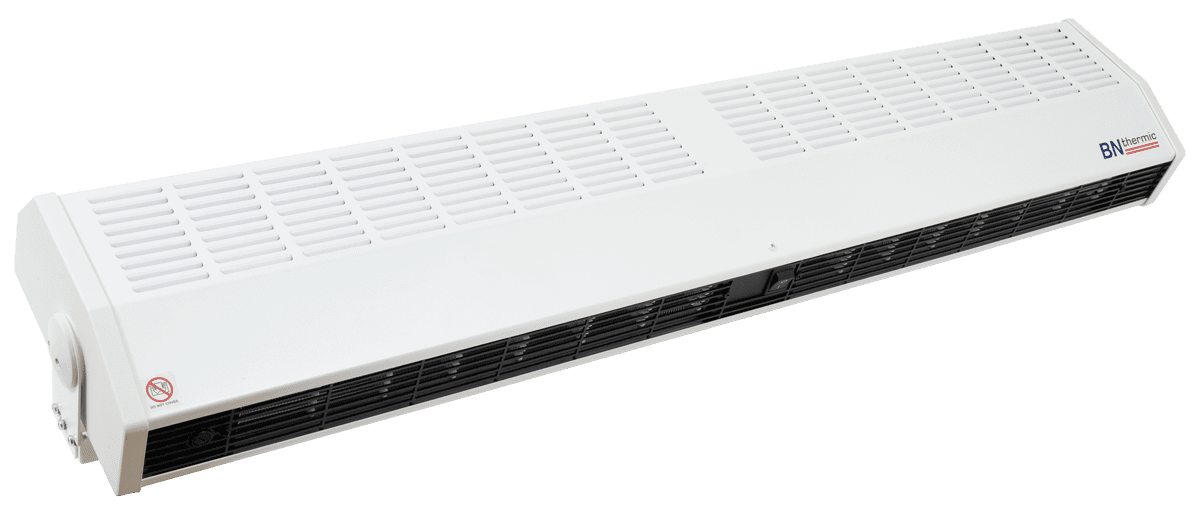

BN Thermic - 860T Wall/Overdoor Heater 6kW800 Series
High Level Wall or Overdoor Fan Assisted Heaters
- Providing warm inviting commercial premises
- Smart modern appearance
- First class whole life value from a product built to the highest possible standard and designed to give many years of trouble free service
- Low running costs by selecting from a range of control options
Typical Applications
- Overdoor heating in shops and cafes
- Space heating in a wide variety commercial premises
Features Common to all Models
- Dual function bracket for vertical discharge (overdoor) or angled discharge (general space heating)
- Attractive white (RAL9010) finish
- Auto-reset over-temperature protection
- Panel front on/off switch
- Pre-wired to rear mounted terminal enclosures
- Simple reduction in output by removal of link in rear mounted enclosure (3kW heater reduced to 2kW and 6kW heater reduced to 4kW)
- Suitable for use with CS-1 remote mounted controller providing on/off/high heat/low heat/fan only settings
Controlling the 800 Series
830 3kW and 860 6kW
Control mode 1 – Simple on/off control
Simple control using panel front on/off switch
Control mode 2 – Remote Thermostat
Thermostatic control using an RST-TP remote mounted tamperproof thermostat, connected into the rear mounted terminal enclosure. The RST-TP’stamperproof design prevents casual adjustment of temperature setting.
Control mode 3 – Remote controller
Control is provided by means of a remote mounted CS-1 control box which is connected into the rear mounted terminal enclosure. The CS-1 controller provides on/off/high heat/low heat/fan only settings.
Control mode 4 – Combination of Remote Thermostat and Remote Controller
Both remote mounted RST-TP tamperproof thermostat and remote mounted CS-1 controller are connected into the rear mounted terminal enclosure. TheRST-TP’s tamperproof design prevents casual adjustment of temperature setting. The CS-1 controller provides on/off/high heat/low heat/fan only settings.
830T 3kW with built-in thermostat and 860T 6kW with built-in thermostat
Control mode 1 – Built-in thermostatic control
On/off control is provided by a panel front switch with thermostatic control provided by the built-in electronic thermostat. Thermostat set-point adjustment is by means of a panel front knob. Once the temperature set-point is reached, the thermostat will switch off both the heating element and the fan.
Control mode 2 – Combination of built-in thermostatic control and remote controller
Thermostatic control is provided by the built-in electronic thermostat. Thermostat set-point adjustment is by means of a panel front knob. Once the temperature set-point is reached, the thermostat will switch off both the heating element and the fan. A remote mounted CS-1 controller is connected into the rear mounted terminal enclosure. The CS-1 controller provides on/off/high heat/low heat/fan only settings.
